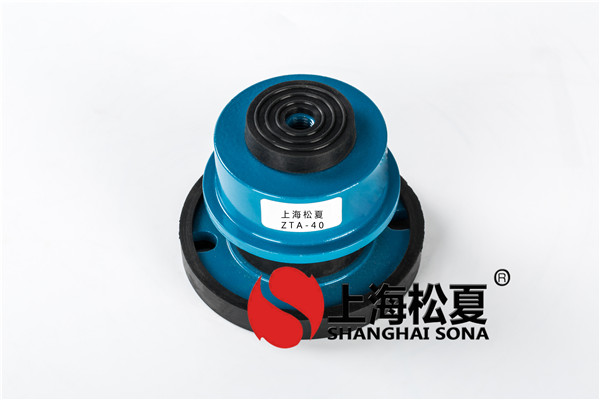

ZTA-40酒店泵组用弹簧减震器

作者:上海松夏 发布时间:2021-05-13 10:46

循环水泵弹簧<a href='/' target='_blank'><u>减震器</u></a>性能特点
ZTA-160循环水泵弹簧减震器性能*点:

1、外形壳体为优质钢材*体成型,减振器在运输以及运作过程中永远都不会出现断裂情况,提升减振器使用寿命。

2、荷载范围广,便于用户选择,固有频率低,隔振效果好,并且结构紧凑,外形尺寸较小,安装更换方便,使用安全可靠,工作寿命长。

3、对工作环境适应性强,。对积.隔振、消.隔振、冲击振动和固体传声的隔离均有明显的效果。是隔离振动降低噪声、治理振动公害、保护环境的理想减振器。

ZTA-160 water pump spring shock absorber performance characteristics:

1, the shape shell is made of high quality steel, and the shock absorber will never break in transportation and operation. It will enhance the of shock absorber.

2, the load range is wide, convenient for users to choose, natural frequency is low, vibration isolation effect is good, and compact structure, small size, easy installation and replacement, safe and reliable operation, long.

3. It has strong adaptability to the working environment and can work normally at . The active vibration isolation and passive isolation, shock and vibration and solid isolation has obvious effect. It is an ideal shock absorber for isolating vibration, reducing noise, harnessing vibration public hazards and protecting environment.

ZTA型系列减振器共有三种安装形式,ZTA型阻尼弹簧减振器上下座面有防滑橡胶垫,对于干扰力较小的动力设备,可直接将ZTA型减振器置放于设备的机座下,勿需固定,扰力较大的设备与减振器固定上安装孔固定,减振器底部安装孔与地面(支架)固定即可。
ZTA series damper consists of three kinds of installation form, ZTA type damping spring damper on the seat surface is non slip rubber pad for power equipment disturbance force is small, can be directly ZTA damper placed on the equipment base, do not need to be fixed, large exciting force equipment and the shock absorber is fixed on the the mounting hole is fixed, the bottom of the shock absorber mounting hole and the ground (bracket) can be fixed.

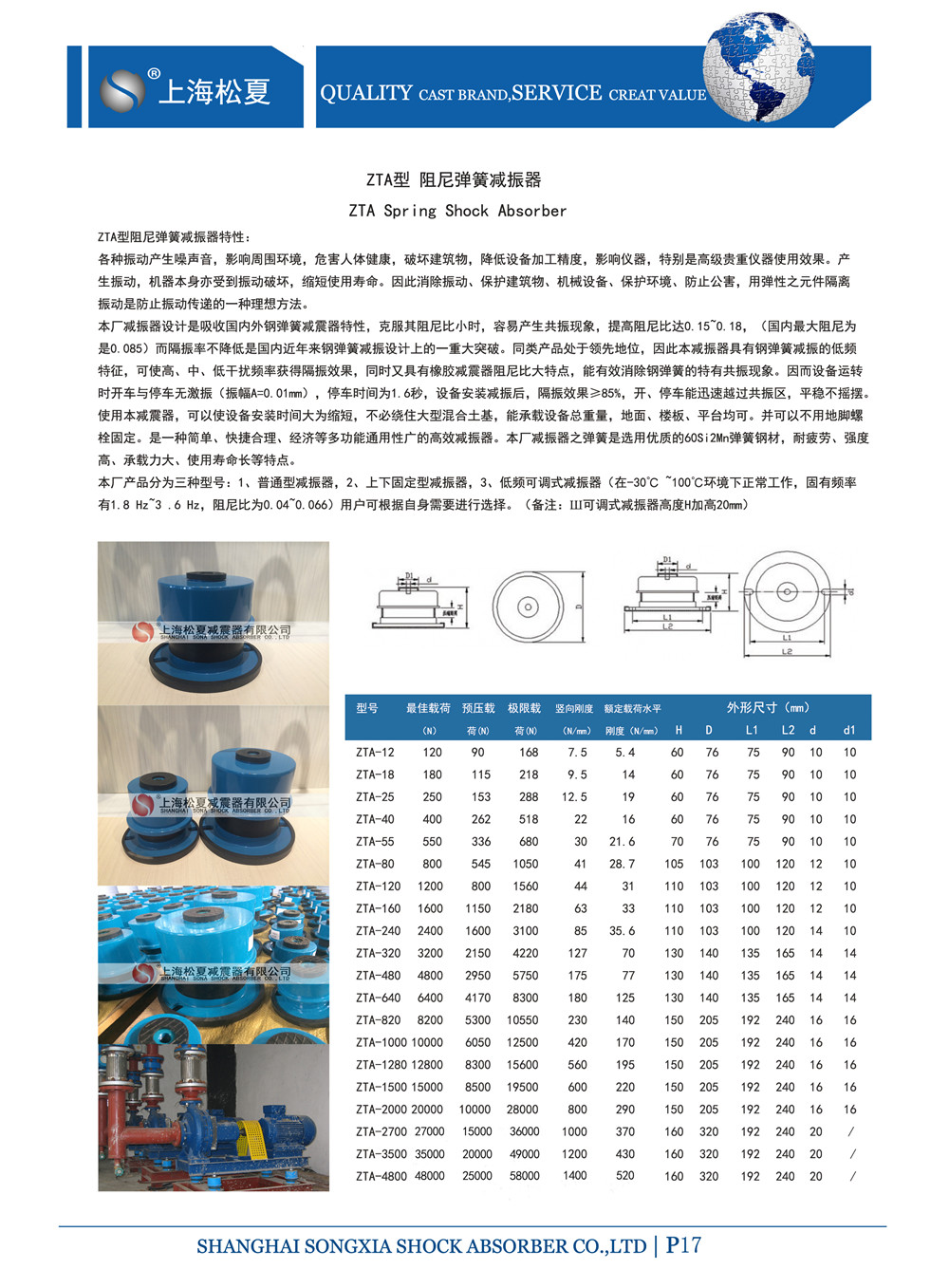

产品参数图:
ZTA减震器参数图
